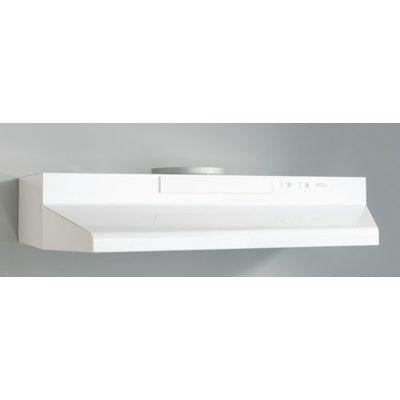

Broan 30-inch Wall Mount Range Hood F403011

BroanSKU: F403011
The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under... The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation. View more
Features Specifications Documents
Features
DISHWASHER-SAFE ALUMINIUM GREASE FILTER
Dishwasher-safe aluminium grease filter
Specifications
General
Series Name
F40000 series
Blower Included
Yes
Airflow
190 CFM
Style
Standard
Color
White
Manufacturer Color
White
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Rectangular
Speeds
2
Additional Information
• Four-way convertible; installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted. Non-Ducted Filter sold separately - Model 41F
• Dishwasher-safe aluminum grease filter
• A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
Electrical Information
Information
• 120 V
• 2,5 A
Accessories
Included
• Includes 3-1/4" x 10" damper/adapter and 7" round adapter
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
7.01 inch(es) / 17.8 cm
Depth
7.99 inch(es) / 20.3 cm
Weight
12.35 lb(s) / 5.6 kg
Warranty
Warranty
1 year limited parts and labor
UPC
UPC#
026715144624
Documents
Installation Guide
Product Specifications
Warranty Details
Dimensions Sheet
